20 AMP ALTERNATOR REPLACING SE501822 M1A10338 AM879144 AM877557 10939
20 AMP ALTERNATOR REPLACING SE501822 M1A10338 AM879144 AM877557 10939
20 AMP ALTERNATOR REPLACING SE501822 M1A10338 AM879144 AM877557 10939
20 AMP ALTERNATOR REPLACING SE501822 M1A10338 AM879144 AM877557 10939
20 AMP ALTERNATOR REPLACING SE501822 M1A10338 AM879144 AM877557 10939

20 AMP ALTERNATOR REPLACING SE501822 M1A10338 AM879144 AM877557 10939

Product information

Replacing
129150-77202YANMAR
AM877557JOHN DEERE
AM879144JOHN DEERE
CH15587JOHN DEERE
GP9165KOKUSAN-DENKI
MIA10338JOHN DEERE
SE501822JOHN DEERE
SE501843JOHN DEERE
Electrical specifications
Voltage14
Amp20

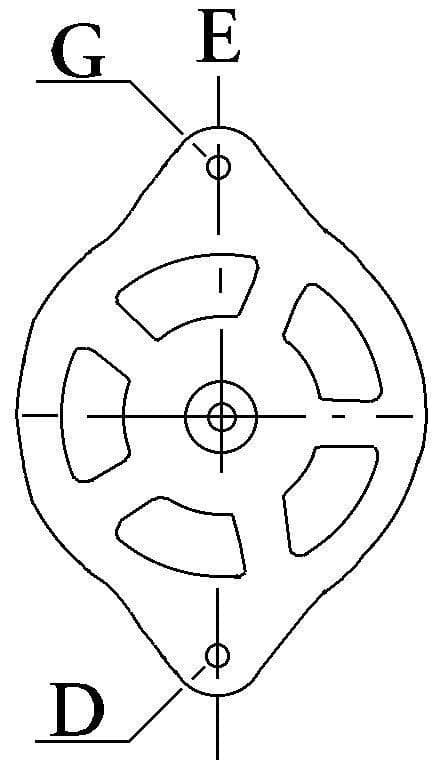

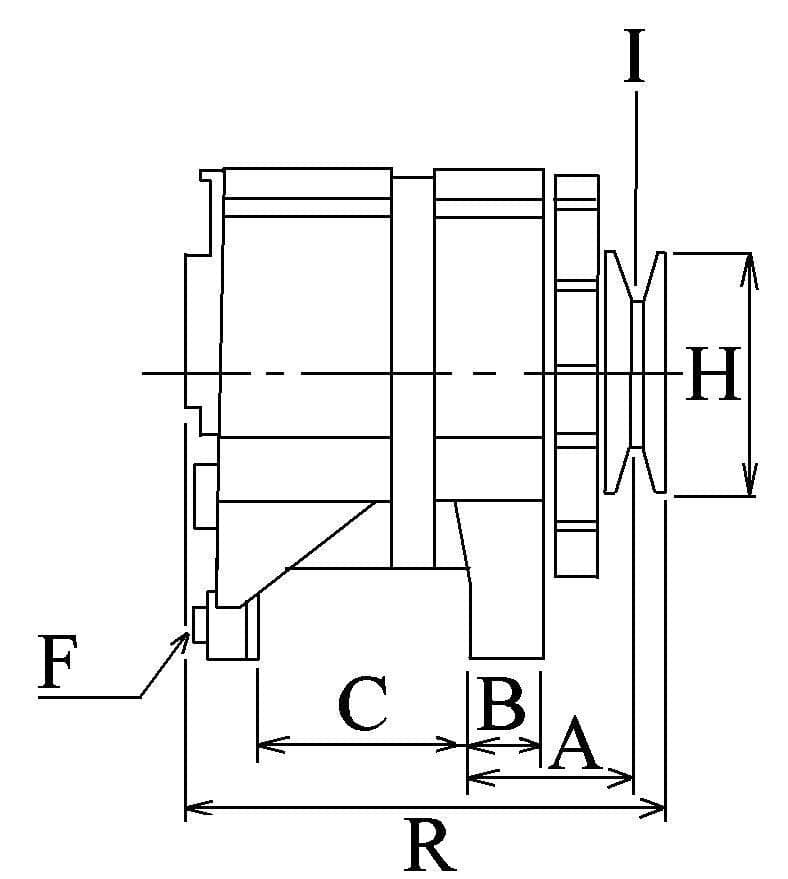

Physical specifications
DBracket hole10.30
GBelt. adj. bracket holeM8
BWidth/holder arm14.20
EBelt. adj. brackethole pos.60
HPulley dia.62.00
APulley dist.42.00
iGrooves/pulley1

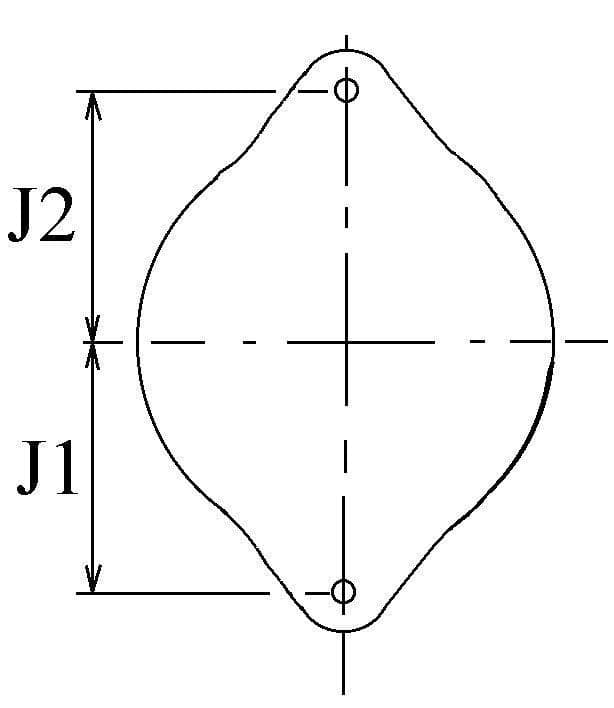

jRadius77.50
jRadius 278.00
RTotal length mm77.00
Further information
PulleyP


Replaced with Our Number 225574

OEM names and numbers are used for reference purposes only.

Technical specifications

Brand: HC Cargo
Product Code: AM877557
Weight: 1.19kg
