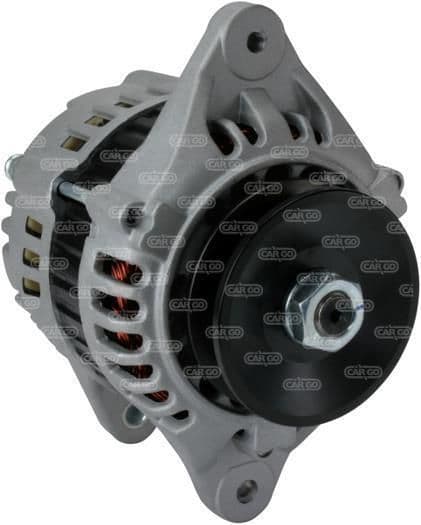

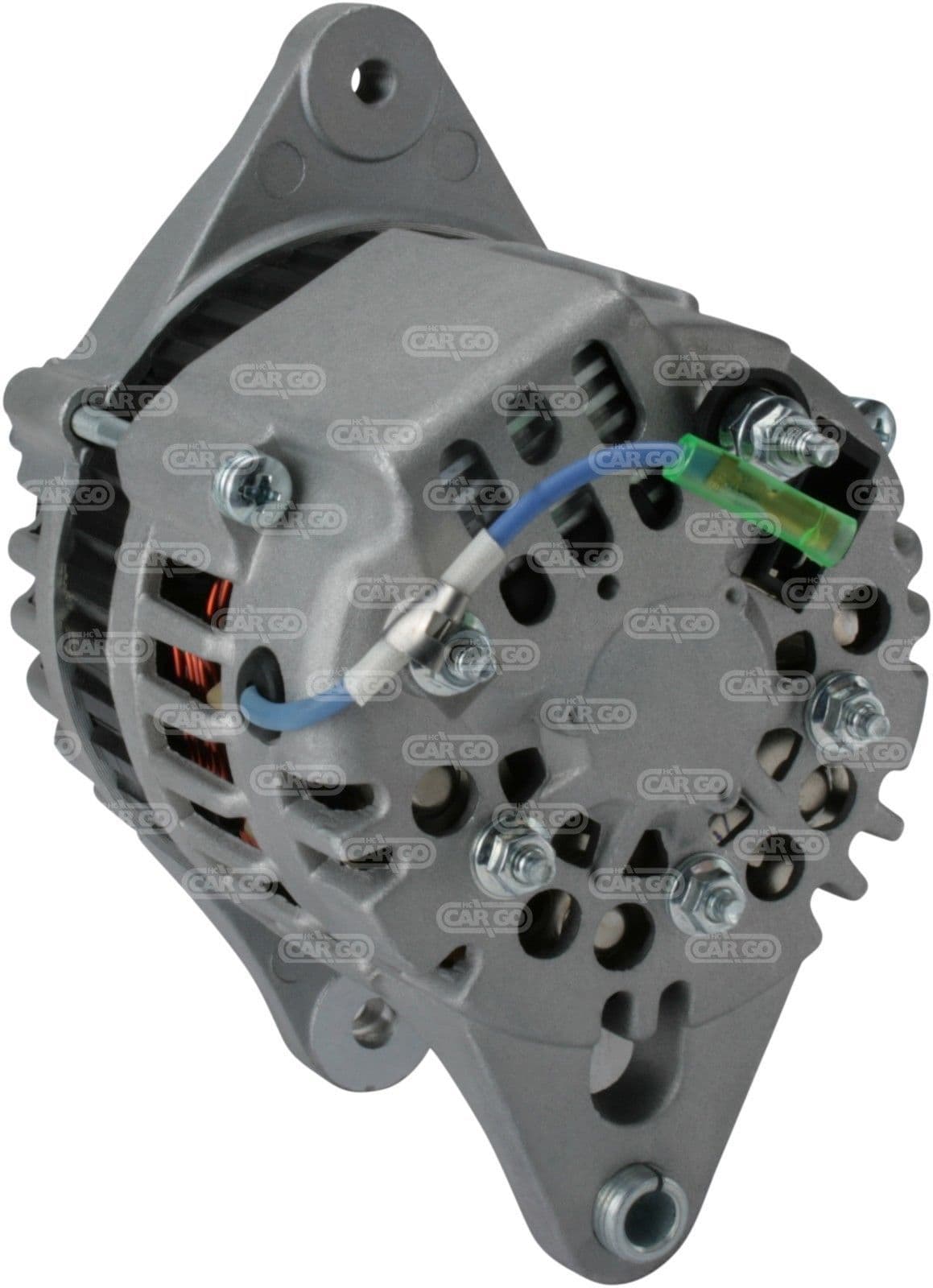

45 amp Alternator Fits Yanmar John Deere 119836-77201 119836-77200 1198367720 3TNE
£125.00
Product information
YANMAR ALTERNATOR / GENERATOR YAMAMAR ~ JOHN DEERE ~ KUBOTA
Electrical specifications (Alternator) |
||
|---|---|---|
| Voltage | 14 | |
| Amp | 45 | |
| Terminal | W | |

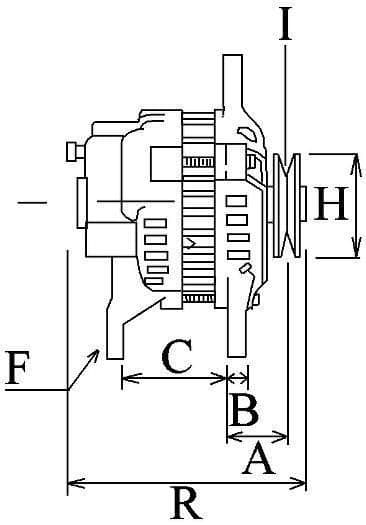

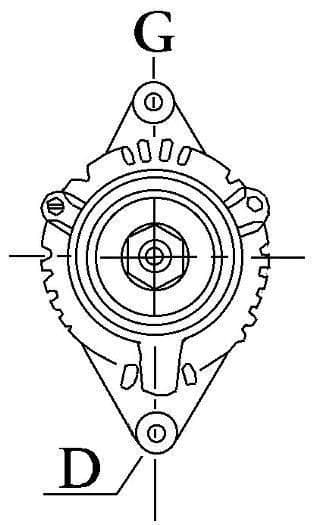

Physical specifications (Alternator) |
||
|---|---|---|
| D | Bracket hole | 8.40 |
| G | Belt. adj. bracket hole | M8 |
| B | Width/holder arm | 12.00 |
| E | Belt. adj. brackethole pos. | 60 |
| C | Mount. bracket dist. | 67.20 |
| H | Pulley dia. | 72.00 |
| A | Pulley dist. | 41.50 |
| i | Grooves/pulley | 1 |
| j | Radius | 78.00 |
| j | Radius | 78.00 |
| k | B+ position | M6 |
| n | Rotation | CR |
| o | Regulator plug | PL10 |
| R | Total length | 142.00 |
Further information (Alternator) |
||
|---|---|---|
| Blower | IF | |
| Pulley | P | |
OEM Part Number:
119836-77200
Replaced with Our Number 113401
OEM names and numbers are used for reference purposes only.
Fits: Yanmar Engines: 3TNE68 / 3TNE74 / 3TNE78A / 3TNE82A / 3TNE88 / 4TNE84 / 4TNE88
|
OEM |
OEM Reference |
|
HITACHI |
LR140714 |
|
HITACHI |
LR140714B |
|
HITACHI |
LR140716 |
|
HITACHI |
LR140721 |
|
HITACHI |
LR140721B |
|
JOHN DEERE |
AM878581 |
|
JOHN DEERE |
AM880733 |
|
KUBOTA |
1752564011 |
|
LUCAS |
LRA01950 |
|
LUCAS |
LRA1950 |
|
YANMAR |
11983677200 |
|
YANMAR |
119836772002 |
|
YANMAR |
119836772003 |
|
YANMAR |
11983677201 |
|
YANMAR |
11983677202 |
|
YANMAR |
11983677 |
Replacing |
||
|---|---|---|
| 113308 | CARGO | |
| 119624-77201 | YANMAR | |
| 119836-77200 | YANMAR | |
| 119836772002 | YANMAR | |
| 119836-77201 | YANMAR | |
| 119836-77202 | YANMAR | |
| 119836-77203 | YANMAR | |
| 129612-77230 | YANMAR | |
| 129930-77210 | YANMAR | |
| 129930-77212 | YANMAR | |
| 1752564011 | KUBOTA | |
| 17525-64011 | KUBOTA | |
| 19836-77200 | KUBOTA | |
| am878581 | JOHN DEERE | |
| am880733 | JOHN DEERE | |
| lr140-714 | HITACHI | |
| lr140-714b | HITACHI | |
| lr140-716 | HITACHI | |
| lr140-719 | HITACHI | |
| lr140-721 | HITACHI | |
| lr140-721b | HITACHI | |
| lr140-721c | HITACHI | |
| lr140-721d | HITACHI | |
| lr140-721e | HITACHI | |
| lr140-723b | HITACHI | |
| lr140-727 | HITACHI | |
Technical specifications
| Brand: | HC Cargo |
| Product Code: | 113401 |
| Weight: | 3.5kg |
