Alternator fits Yanmar 119620-77201 119620-77202 27060-78001 KOMATSU 6008212350
Alternator fits Yanmar 119620-77201 119620-77202 27060-78001 KOMATSU 6008212350
Alternator fits Yanmar 119620-77201 119620-77202 27060-78001 KOMATSU 6008212350
Alternator fits Yanmar 119620-77201 119620-77202 27060-78001 KOMATSU 6008212350

Alternator fits Yanmar 119620-77201 119620-77202 27060-78001 KOMATSU 6008212350

Product information

ALTERNATOR GENERATOR FITS YANMAR TOYOTA
Electrical specifications (Alternator)
Voltage 14
Amp 40

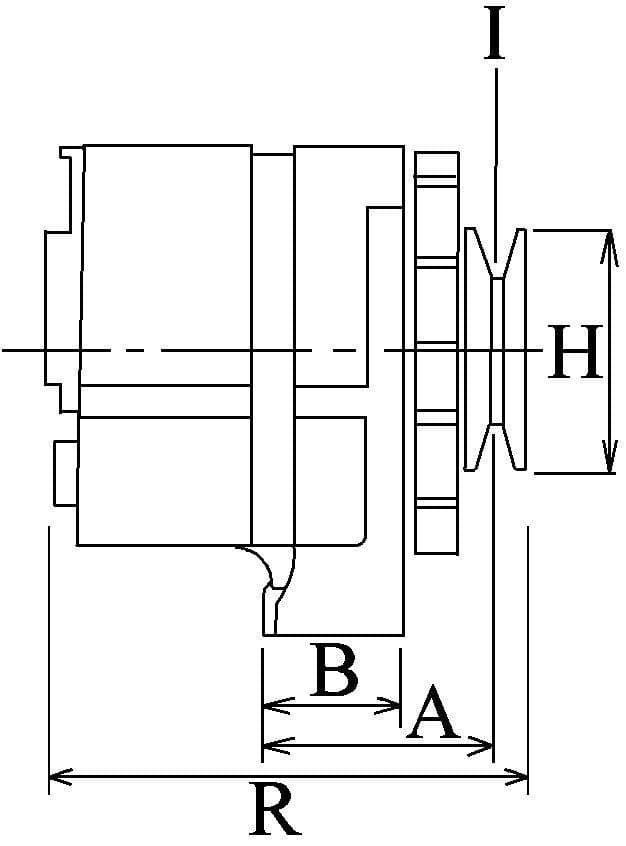

Physical specifications (Alternator)

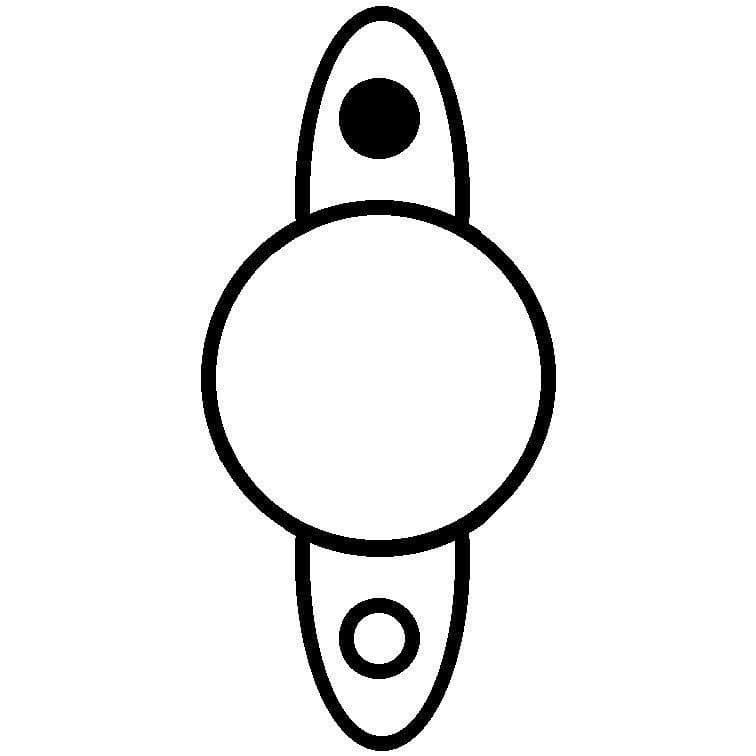

D Bracket hole 10.20
G Belt. adj. bracket hole M8
B Width/holder arm 23.50
E Belt. adj. brackethole pos. 60
H Pulley dia. 74.75
A Pulley dist. 44.00
i Grooves/pulley 1
j Radius 69.50
j Radius 66.00
k B+ position M6
n Rotation CR
o Regulator plug PL10
R Total length 143,00
Further information (Alternator)
Blower IF
Pulley P

OEM Part number

119620-77201
119620-77202
Toyota
27060-78001
KOMATSU 6008212350

Replacing
100211-1660 DENSO
100211-1661 DENSO
100211-1662 DENSO
100211-4530 DENSO
100211-4531 DENSO
100211-4700 DENSO
100211-4701 DENSO
119620-77201 YANMAR
119620-77202 YANMAR
27060-78001 TOYOTA
27060-78001-71 TOYOTA
27060-96001 TOYOTA
am877740 JOHN DEERE
ja971ir HC-PARTS

Replaced with Our Number 221731

OEM names and numbers are used for reference purposes only


Technical specifications

Brand: HC Cargo
Product Code: 110620
Weight: 3.5kg
