Alternator fits Yanmar 128171-77200 1GM10 / 2GM20F / 2GM20 128270-77201
Alternator fits Yanmar 128171-77200 1GM10 / 2GM20F / 2GM20 128270-77201
Alternator fits Yanmar 128171-77200 1GM10 / 2GM20F / 2GM20 128270-77201
Alternator fits Yanmar 128171-77200 1GM10 / 2GM20F / 2GM20 128270-77201
Alternator fits Yanmar 128171-77200 1GM10 / 2GM20F / 2GM20 128270-77201

Alternator fits Yanmar 128171-77200 1GM10 / 2GM20F / 2GM20 128270-77201

Product information

ALTERNATOR / GENERATOR FITS YANMAR
Electrical specifications
Voltage 14
Amp 35
Terminal W

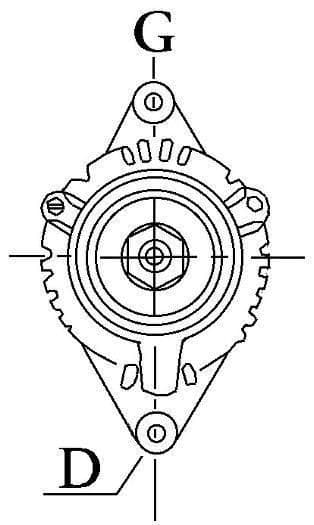

Physical specifications
D Bracket hole 8.50
G Belt. adj. bracket hole M8x1,25
B Width/holder arm 13.50
E Belt. adj. brackethole pos. 60
C Mount. bracket dist. 81.65
H Pulley dia. 70.35
A Pulley dist. 41.85
i Grooves/pulley 1
j Radius 76.40
j Radius 76.60
k B+ position M5
n Rotation CR
o Regulator plug PL09
R Total length mm 168.00



Technical specifications

Product Code: 112270
Weight: 3.5kg
