Alternator Fits Yanmar 2TNE68 2TNE-68 2TNE Kubota 35amp 119620-77202
Alternator Fits Yanmar 2TNE68 2TNE-68 2TNE Kubota 35amp 119620-77202
Alternator Fits Yanmar 2TNE68 2TNE-68 2TNE Kubota 35amp 119620-77202
Alternator Fits Yanmar 2TNE68 2TNE-68 2TNE Kubota 35amp 119620-77202
Alternator Fits Yanmar 2TNE68 2TNE-68 2TNE Kubota 35amp 119620-77202

Alternator Fits Yanmar 2TNE68 2TNE-68 2TNE Kubota 35amp 119620-77202

Product information

YANMAR / KUBOTA ALTERNATOR / GENERATOR
Electrical specifications (Alternator)
Voltage 14
Amp 35

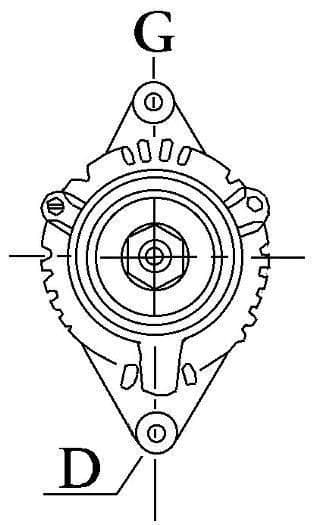

Physical specifications (Alternator)
D Bracket hole 10.20
G Belt. adj. bracket hole M8
B Width/holder arm 23.50
E Belt. adj. brackethole pos. 60
H Pulley dia. 74.75
A Pulley dist. 44.00
i Grooves/pulley 1
j Radius 69.50
j Radius 66.00
k B+ position M6
n Rotation CR
o Regulator plug PL10
R Total length 143,00
Further information (Alternator)
Blower IF
Pulley P
Replacing
100211-1660DENSO
100211-1661DENSO
100211-1662DENSO
100211-4530DENSO
100211-4531DENSO
100211-4700DENSO
100211-4701DENSO
119620-77201YANMAR
119620-77202YANMAR
27060-78001TOYOTA
27060-78001-71TOYOTA
27060-96001TOYOTA
am877740JOHN DEERE
ja971irHC-PARTS


SKID STEER LOADERS 317 JD 4024T 57HP Engine
SKID STEER LOADERS 320 JD 4024T 62HP Engine
SKID STEER LOADERS 675 1987-1989
SKID STEER LOADERS 675B 1988-1993
TRACTORS - FARM 3235 Yanmar Engines
TRACTORS - FARM 455 Yanmar 3T72 1995-1996
TRACTORS - FARM F1145 Yanmar 3TN75
TRACTORS - FARM F925 Yanmar 3TNA72
TRACTORS - FARM F935 Yanmar 3TNA72
TRACTORS - UTILITY 4010 Yanmar 18.5HP Dsl
TRACTORS - UTILITY 4110 Yanmar 20HP Dsl
TRACTORS - UTILITY 655 Yanmar Engines 1993-1995
TRACTORS - UTILITY 755 Yanmar 3T72 1993-1995
TRACTORS - UTILITY 756 Yanmar 3T72 1986-1990
TRACTORS - UTILITY 855 Yanmar 3T72 1995
TRACTORS - UTILITY 856 Yanmar 3T72 1986-1990
TRACTORS - UTILITY 955 Yanmar Diesel 1990-1995

JOHN DEERE Outdoor Power Equip.

MOWERS - FAIRWAY 3215B JD Series 220 26HP Dsl
MOWERS - FAIRWAY 3225B JD Series 220 32HP Dsl
MOWERS - FAIRWAY 3225C JD Series 220 38.5HP Dsl
MOWERS - FAIRWAY 3235B JD Series 220 39HP Dsl
MOWERS - FAIRWAY 3235C JD Series 220 48HP Dsl
MOWERS - FAIRWAY 3245C JD Series 220 48HP Dsl
MOWERS - FRONT F1145 Yanmar 3TN75
MOWERS - FRONT F1145 Yanmar 3TNE78A
MOWERS - TURF 3325 From Ser. #002742
MOWERS - TURF 3365 From Ser. #002742
MOWERS - WIDE AREA 1600 Yanmar 51HP Dsl
MOWERS - WIDE AREA 1620 Yanmar 51HP Dsl
MOWERS - Z-TRAK 997 Yanmar 30HP Dsl
TRACTORS - LAWN 425 20HP 1993-1997
TRACTORS - LAWN 430 Yanmar 22HP Dsl 1984-1991
TRACTORS - LAWN 445 22HP Gas 1993-1997
TRACTORS - LAWN 455 Yanmar 22HP Dsl 1993-1997
TRACTORS - LAWN X495 Yanmar 24HP Dsl
TRACTORS - LAWN X595 4WD Yanmar 24HP Dsl
UTILITY VEHICLE (UTV) Gator 6 x 4 Yanmar 18HP Dsl
UTILITY VEHICLE (UTV) Gator HPX Yanmar 3TNE68 20HP Dsl
UTILITY VEHICLE (UTV) Gator XUV 850D 4x4 Yanmar 3TNV70 24HP Dsl
UTILITY VEHICLE (UTV) Trail Gator 6 x 4 Yanmar 18HP Dsl

JOHN DEERE Powersport

UTILITY VEHICLE (UTV) Gator 6 x 4 Yanmar 18HP Dsl
UTILITY VEHICLE (UTV) Gator HPX Yanmar 3TNE68 20HP Dsl
UTILITY VEHICLE (UTV) Gator XUV 850D 4x4 Yanmar 3TNV70 24HP Dsl
UTILITY VEHICLE (UTV) Trail Gator 6 x 4 Yanmar 18HP Dsl

TRACTORS Various Models 3TNA72 Engine
Replaced with Our Number 11200611

OEM names and numbers are used for reference purposes only

Technical specifications

Brand: HC Cargo
Product Code: 110620
Weight: 3.5kg
