Alternator Replaces Yanmar 129772-77200 55 Amp 2GM 4JH2E
Product information
Electrical specifications | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 55 | |
| Double isolation | Yes | |

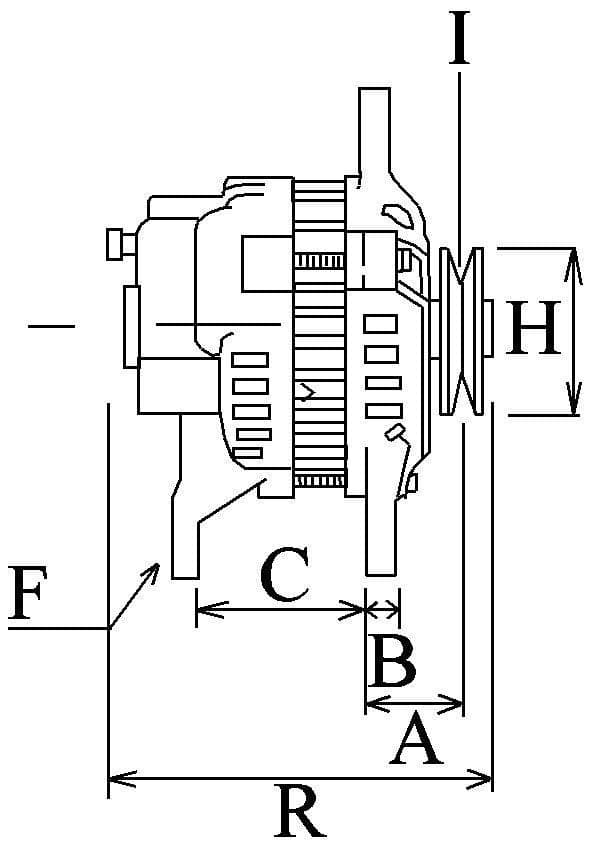

Physical specifications | ||
|---|---|---|
| D | Bracket hole | 10.00 |
| G | Belt. adj. bracket hole | M8 |
| B | Width/holder arm | 13.00 |
| E | Belt. adj. brackethole pos. | 60 |
| C | Mount. bracket dist. | 80.00 |
| H | Pulley dia. | 72.00 |
| A | Pulley dist. | 42.00 |
| i | Grooves/pulley | 1 |

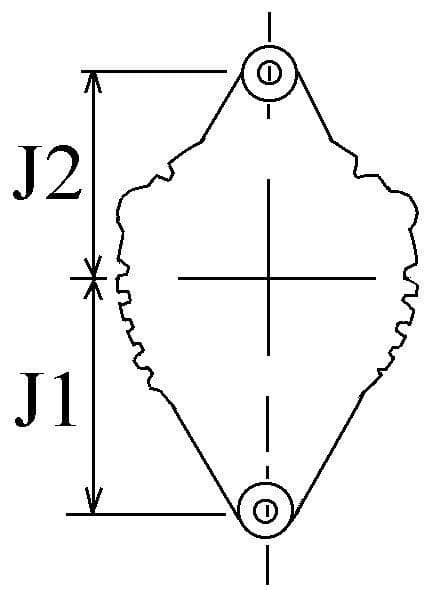

| j | Radius | 90.00 |
| j | Radius | 85.00 |
| k | B+ position | M5 |
| n | Rotation | CR |
| o | Regulator plug | PL09 |
| R | Total length mm | 184.00 |
Further information | ||
|---|---|---|
| Blower | EF | |
| Pulley | P | |
Replacing | ||
|---|---|---|
| 129772-77200 | ||
OEM Part Number: 129772-77200 55amp, 119573-77201 128271-77270 129470-77200
YANMAR MARINE ENGINES - MARINE 2GM20 2CYL, 38.81CI, 0.636L DIESEL
YANMAR MARINE ENGINES - MARINE 2GMFL 2CYL DIESEL
YANMAR MARINE ENGINES - MARINE 2GMFY(E)-E 2CYL DIESEL
YANMAR MARINE ENGINES - MARINE 2GML 2CYL DIESEL
YANMAR MARINE ENGINES - MARINE 2GMYE-EC 2CYL DIESEL
YANMAR MARINE ENGINES - MARINE 3GM30 3CYL DIESEL
YANMAR MARINE ENGINES - MARINE 3HM35 3CYL DIESEL 1982-1992
YANMAR MARINE ENGINES - MARINE 3JH2 3CYL DIESEL 1991-1999
YANMAR MARINE ENGINES - MARINE 3JH2BE 3CYL DIESEL 1991-1999
YANMAR MARINE ENGINES - MARINE 3JH2E 3CYL DIESEL 1991-1999
YANMAR MARINE ENGINES - MARINE 3JH3 3CYL DIESEL 1999-2003
YANMAR MARINE ENGINES - MARINE 3JH3E 3CYL DIESEL
YANMAR MARINE ENGINES - MARINE 3JH3E-YEU 3CYL DIESEL
YANMAR MARINE ENGINES - MARINE 4JH-DTE 4CYL DIESEL
Replaced with Our Number 11933711 55amp
OEM names and numbers are used for reference purposes only.
Fits: Yanmar Engines: 2YM15 ~ 2YM-15 ~ 3YM ~ 2GM20 ~ 3GM30 ~ 3GM-30 3GM30 ~ 3GM30F 4JH and many more Yanmars please e-mail us your model to see if this will fit your unit.
Technical specifications
| Brand: | HC Cargo |
| Product Code: | 113793 |
| Weight: | 5.42kg |
