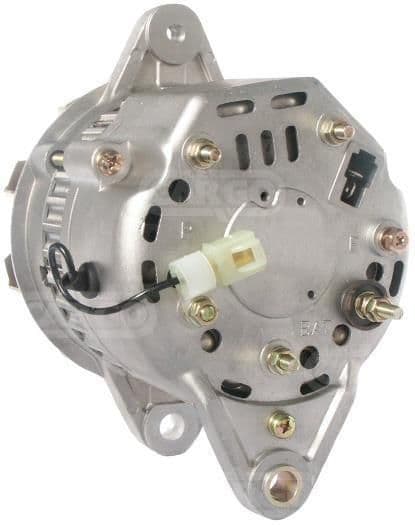

Alternator Replaces Yanmar 2GM20 2GMF 2GMFL 2GMFY 2GML 2GMYEwith W Terminal
£114.49
Out of stock
Product information
YANMAR ALTERNATOR / GENERATOR
Electrical specifications |
||
|---|---|---|
| Voltage | 14 | |
| Amp | 35 | |
| Terminal | W | |

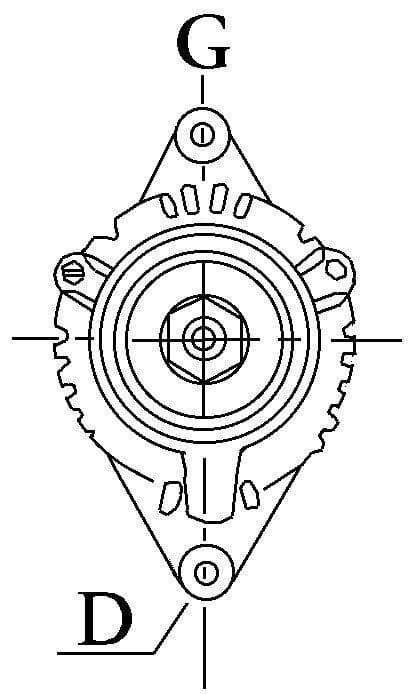

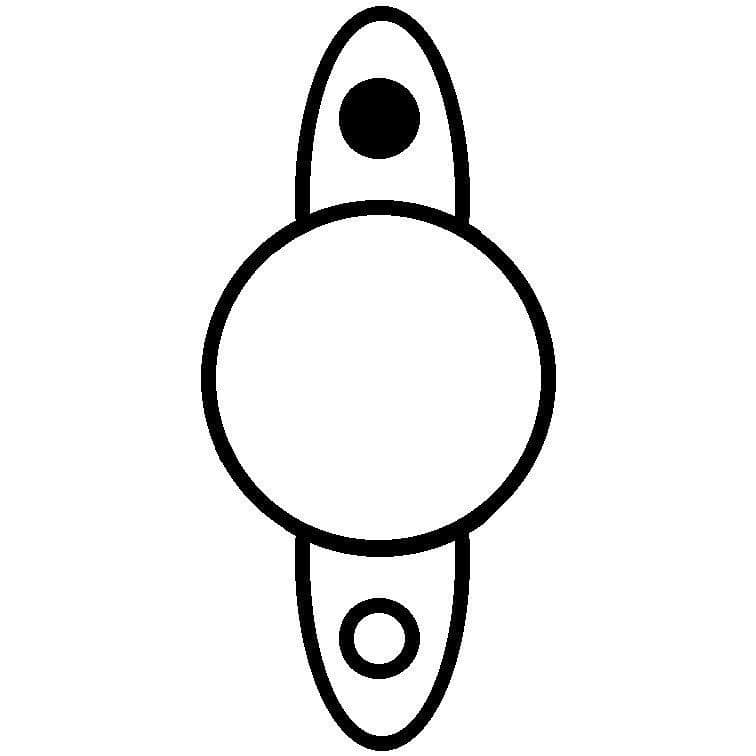

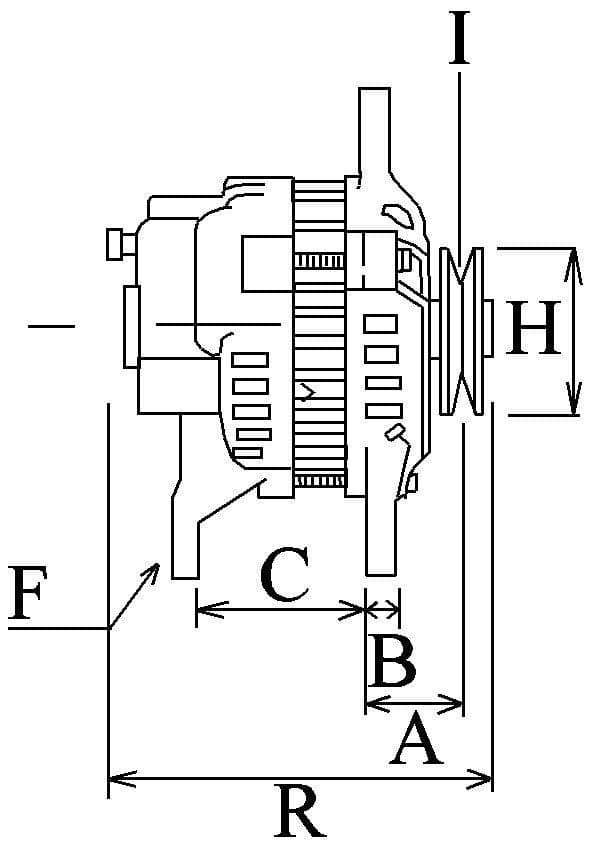

Physical specifications |
||
|---|---|---|
| D | Bracket hole | 8.50 |
| G | Belt. adj. bracket hole | M8x1,25 |
| B | Width/holder arm | 13.50 |
| E | Belt. adj. bracket hole pos. | 60 |
| C | Mount. bracket dist. | 81.65 |
| H | Pulley dia. | 70.35 |
| A | Pulley dist. | 41.85 |
| i | Grooves/pulley | 1 |

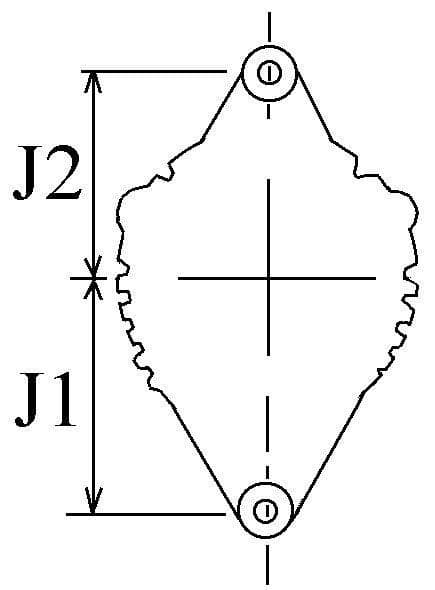

| j | Radius | 76.40 |
| j | Radius 2 | 76.60 |
| k | B+ position | M5 |
| n | Rotation | CR |
| o | Regulator plug | PL09 |
| R | Total length mm | 168.00 |
Further information |
||
|---|---|---|
| Blower | EF | |
| Pulley | P | |
| Regulator type | IR | |
| Prod. info | BN | |
|
To Fit: 1GM, 1GML, 1GMY, 1GM10, 1GM10, 2GM, 2GMF, 2GMFL, 2GMFY-E, 2GML, 2GM20, 2QM15, 2TD, 2TM, 3GM, 3GMD, 3GMF, 3GMFY-E, 3GMLE, 3HM, 3HMF, 3JH2, 3JH3, 3JH3Z, 3TD, 3TM, 4GM, 4JH, 4JH-HT, 4JHT-Z, 4JH2L-HTNE, 4JH3, 4JH3ZA, 4JHZ, 4TD, 4TM, KM2A, KM2P, KM3V, Y-5M Replacing |
||
|---|---|---|
| 121400-77201 | YANMAR | |
| 124080-77201 | YANMAR | |
| 128171-77200 | YANMAR | |
| 128270-77200 | YANMAR | |
| 128270-77201 | YANMAR | |
Technical specifications
| Product Code: | 112270 |
| Weight: | 3.5kg |
