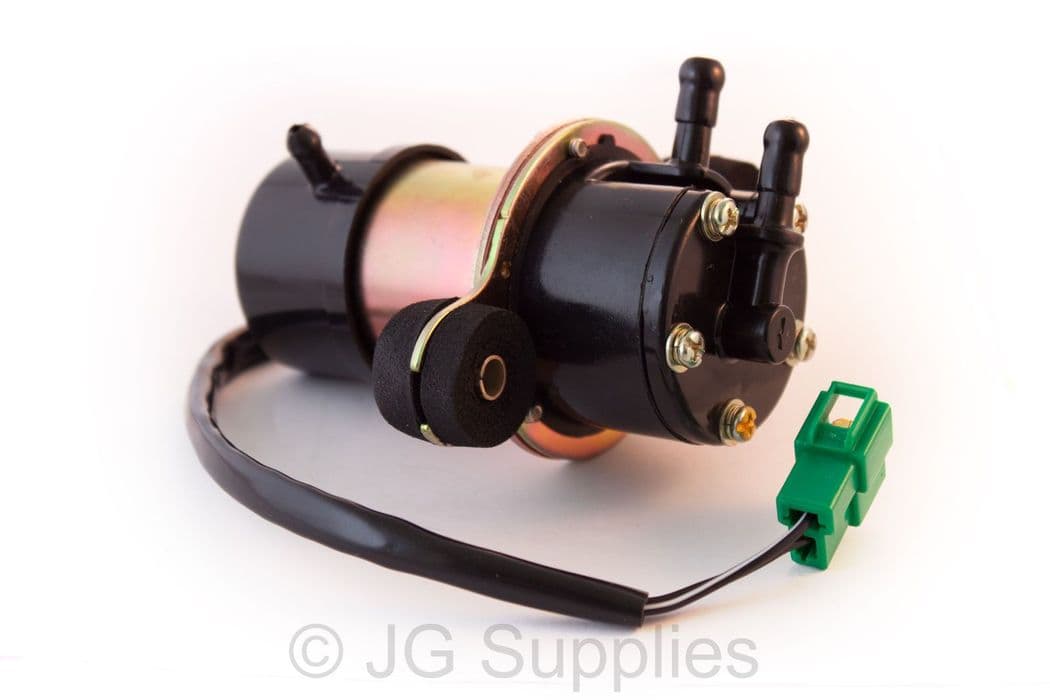

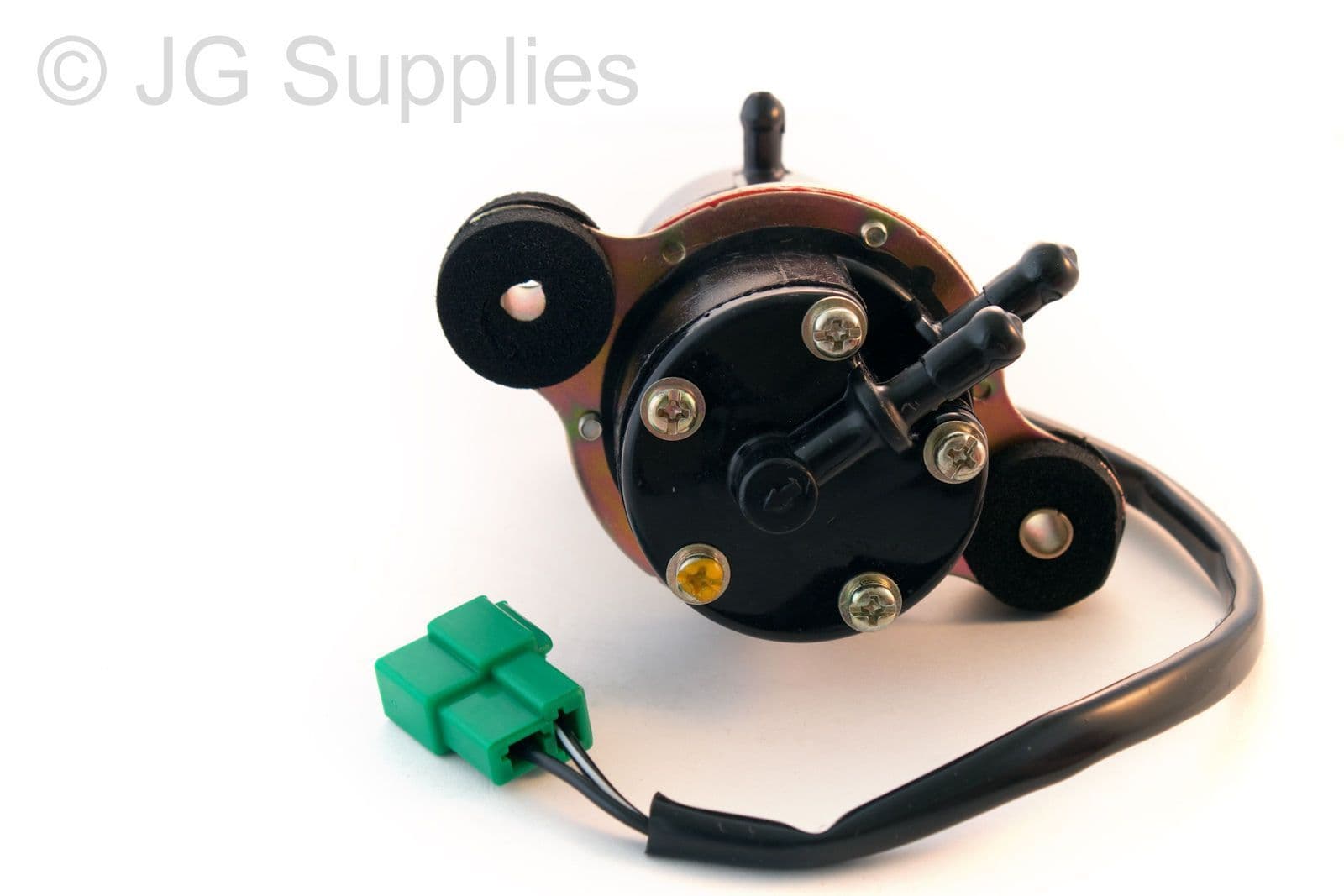

Fuel Pump Fits various applications Mitsubishi Honda Suzuki DAIHATSU NISSAN

Fuel Pump Fits various applications Mitsubishi Honda Suzuki Bedford

Suzuki Fuel pump - 2 wire with "T" style plug

Fuel pump for Prime power Generator drive Mitsubishi L2E L3E S3L S3L2 S4L S4L2

1990-1998 2 wire "T" style plug.

Will work on "oval" style plug installations by swapping the ends or direct hardwire.

Will work on 3 wire pump vehicles by hardwiring pum

fits the following vehicles:

BEDFORD

RASCAL Bus 1.0 970 cc 46 HP 34 kW 1986-07-01 - 1990-06-01 FA10A —

RASCAL BOX 1.0 970 cc 46 HP 34 kW 1986-07-01 - 1990-06-01 FA10A —

DAIHATSU

HIJET BUS 0.8 843 cc 39 HP 29 kW 1986-06-01 - 1989-12-01 CD —

HIJET BOX 0.8 843 cc 39 HP 29 kW 1986-06-01 - 1989-12-01 CD —

HIJET BOX (S85) 1.0 993 cc 45 HP 33 kW 1992-12-01 - 1998-05-01 CB41 4013014

ROCKY Hard Top (F7, F8) 2.0 4x4 1998 cc 88 HP 65 kW 1985-02-01 - 1993-04-01 3Y 711133

ROCKY Soft Top (F7, F8) 2.0 1998 cc 88 HP 65 kW 1985-02-01 - 1993-04-01 3Y 7111329

SPARCAR Bus (S7_) 0.8 843 cc 39 HP 29 kW 1983-09-01 - 1986-05-01 CD —

SPARCAR Bus (S7_) 1.0 993 cc 45 HP 33 kW 1983-09-01 - 1986-05-01 CB —

SPARCAR BOX (S7_) 0.8 843 cc 39 HP 29 kW 1983-09-01 - 1986-05-01 CD —

SPARCAR BOX (S7_) 1.0 993 cc 45 HP 33 kW 1983-09-01 - 1986-05-01 CB —

TAFT 1.6 D 4x4 (F20, F25) 1587 cc 67 HP 49 kW 1976-09-01 - 1985-02-01 12R —

HONDA

ACCORD III (CA) 1.6 L (CA4) 1598 cc 88 HP 65 kW 1985-11-01 - 1989-12-01 A16A1 7100424

CIVIC I Stufenheck (SF) 1300 L 1335 cc 60 HP 44 kW 1980-09-01 - 1983-09-01 EN1 7100314

CIVIC I Stufenheck (SF) 1300 L 1335 cc 45 HP 33 kW 1980-09-01 - 1983-09-01 EN2 7100315

CIVIC I Stufenheck (SF) 1300 S 1335 cc 71 HP 52 kW 1979-10-01 - 1984-12-01 EN4 7100405

CIVIC II ESTATE (WC) 1300 1335 cc 60 HP 44 kW 1979-09-01 - 1983-09-01 EN1 7100401

CIVIC II Schrägheck (SS, SL) 1300 L (SS) 1335 cc 60 HP 44 kW 1979-09-01 - 1983-09-01 EN1 7100313

CIVIC III Hatchback (AL, AJ, AG, AH) 1.3 (AG) 1342 cc 71 HP 52 kW 1983-10-01 - 1987-10-01 EV2 7100414

CIVIC III Stufenheck (AM, AK, AU) 1.3 1342 cc 71 HP 52 kW 1983-10-01 - 1987-10-01 EV2 —

CIVIC IV Hatchback (EC, ED, EE) 1.3 16 V (EC8) KAT 1343 cc 75 HP 55 kW 1989-09-01 - 1991-09-01 D13B2 7100451

CIVIC IV Hatchback (EC, ED, EE) 1.3 (EC8) 1343 cc 75 HP 55 kW 1987-10-01 - 1989-12-01 D13B1 7100451

CIVIC IV Stufenheck (ED) 1.3 1343 cc 75 HP 55 kW 1987-10-01 - 1989-12-01 D13B1 —

CIVIC V Hatchback (EG) 1.3 16V (EG3) 1343 cc 75 HP 55 kW 1991-10-01 - 1995-11-01 D13B2 7100480

INTEGRA (DA) 1.5 1488 cc 86 HP 63 kW 1985-10-01 - 1989-08-01 D15A1 —

PRELUDE I Coupe (SN) 1.6 1602 cc 80 HP 59 kW 1978-11-01 - 1982-10-01 EL, EL14 7100312

PRELUDE II (AB) 1.8 EX 1829 cc 101 HP 74 kW 1985-11-01 - 1987-04-01 ET4, ET3 7100406

PRELUDE II (AB) 1.8 EX 1829 cc 105 HP 77 kW 1983-11-01 - 1987-04-01 ET2, ET3 7100407

INNOCENTI

MINI 0.55 548 cc 33 HP 24 kW 1987-01-01 - 1991-12-01 Daihatsu-EB —

MINI 0.65 617 cc 31 HP 23 kW 1984-01-01 - 1987-12-01 AD —

MINI 1.0 993 cc 37 HP 27 kW 1985-10-01 - 1991-10-01 BLM C 99 H —

LADA

NIVA (2121) 1600 1569 cc 73 HP 54 kW 1987-01-01 - 1995-03-01 BA3 2121 9308319

NIVA (2121) 1600 1569 cc 76 HP 56 kW 1980-04-01 - 1987-12-01 BA3 2121 9308310

NIVA (2121) 1600 1570 cc 76 HP 56 kW 1976-12-01 - 1987-05-01 BA3 2121 9308338

MAZDA

121 I (DA) 1.3 1324 cc 60 HP 44 kW 1987-10-01 - 1990-11-01 B3 7118383

121 I (DA) 1.3 1324 cc 55 HP 40 kW 1989-04-01 - 1990-10-01 B3 7118420

MITSUBISHI

L 300 Bus (LO3_P/G, L0_2P) 2.3 D (L038P) 2347 cc 68 HP 50 kW 1983-04-01 - 1986-10-01 4D55 7107353

L 300 Bus (P0_W, P1_W, P2_W) 2.5 TD 4WD (P25W, P25V)2477 cc 87 HP 64 kW 1988-11-01 - bis jetzt4D56 T7107440

L 300 BOX (L03_P) 2.3 D (L038P, L068P) 2347 cc 68 HP 50 kW 1983-09-01 - 1986-10-01 4D55 7107504

L 300 BOX (P0_W, P1_W, P0_V, P1_V, P_2V, P2_W) 1.6 (P12V, P02V) 1598 cc 69 HP 51 kW 1986-11-01 - 1994-05-01 4G32 7107511

SPACE WAGON (D0_V/W) 2.0 GLX (D04W) 1997 cc 84 HP 62 kW 1986-06-01 - 1988-05-01 G63B 7107392

SPACE WAGON (D0_V/W) 2.0 GLXi (D04W) 1997 cc 101 HP 74 kW 1988-06-01 - 1991-04-01 4G63 (SOHC 8V) 7107433

NISSAN

BLUEBIRD (910) 1.6 1595 cc 82 HP 60 kW 1980-01-01 - 1983-11-01 L16 —

BLUEBIRD (T72 , T12) 1.6 1598 cc 83 HP 61 kW 1986-03-01 - 1990-06-01 CA16S —

BLUEBIRD Hatchback (T72, T12) 1.6 1598 cc 83 HP 61 kW 1986-03-01 - 1990-06-01 CA16S —

BLUEBIRD Hatchback (T72, T12) 1.6 1598 cc 90 HP 66 kW 1986-03-01 - 1991-06-01 CA16S —

MICRA I (K10) 1.2 1235 cc 60 HP 44 kW 1986-07-01 - 1992-07-01 MA12S 7105445

MICRA I (K10) 1.2 1235 cc 54 HP 40 kW 1986-07-01 - 1992-07-01 MA12S 7105461

PRAIRIE (M10, NM10) 2.0 4x4 (NM10) 1974 cc 92 HP 68 kW 1986-06-01 - 1988-09-01 CA20S 7105438

PRAIRIE PRO (M11) 2.0 i 1974 cc 98 HP 72 kW 1988-10-01 - 1992-04-01 CA20E 7105456

PRAIRIE PRO (M11) 2.0 i 4x4 1974 cc 98 HP 72 kW 1988-10-01 - 1992-12-01 CA20E 7105457

VANETTE Bus (KC120) 1.5 1488 cc 69 HP 51 kW 1983-01-01 - 1987-12-01 A15 7105389, 7105505

ROVER

800 (XS) 827 SI/Sterling (XS) 2675 cc 177 HP 130 kW 1988-02-01 - 1991-12-01 C 27 A2 2111346

800 (XS) 827 SI/Sterling (XS) KAT 2675 cc 169 HP 124 kW 1988-02-01 - 1999-02-01 C 27 A1 2055325, 2055357, 2111344

SUBARU

REX III 0.8 758 cc 42 HP 31 kW 1989-06-01 - 1992-03-01 EN08 —

SUZUKI

ALTO 0.8 (SB308/CA) 796 cc 39 HP 29 kW 1986-01-01 - 1988-12-01 F8B 7102313

ALTO (SS80) 0.8 (SS80F, SS80G) 796 cc 39 HP 29 kW 1982-06-01 - 1984-08-01 F8B 7102300, 7102301

LJ 80 0.8 797 cc 39 HP 29 kW 1980-01-01 - 1984-01-01 F8A 7102302

SAMURAI (SJ) 1.0 4X4 (SJ 410) 970 cc 45 HP 33 1988-11-01 - 2004-12-01 F10A 7102305

SAMURAI (SJ) 1.3 4X4 (SJ 413) 1324 cc 60 HP 44 kW 1988-11-01 - 2004-12-01 G13A 7102315

SAMURAI (SJ) 1.3 4X4 (SJ 413) 1298 cc 70 HP 51 kW 1988-11-01 - 2004-12-01 G13BA 7102321, 7102340, 7612300, 7612301, 7612318, 7612319

SAMURAI (SJ) 1.3 (SJ 413) 1324 cc 64 HP 47 kW 1988-11-01 - 2004-12-01 G13A 7102310

SAMURAI (SJ) 1.0 4X4 (SJ 410) 970 cc 45 HP 33 kW 1988-11-01 - 2004-12-01 F10A 7102305

SAMURAI (SJ) 1.3 4X4 (SJ 413) 1324 cc 60 HP 44 kW 1988-11-01 - 2004-12-01 G13A 7102315

SAMURAI (SJ) 1.3 4X4 (SJ 413) 1298 cc 70 HP 51 kW 1988-11-01 - 2004-12-01 G13BA 7102321, 7102340, 7612300, 7612301, 7612318, 7612319

SAMURAI (SJ) 1.3 (SJ 413) 1324 cc 64 HP 47 kW 1988-11-01 - 2004-12-01 G13A 7102310

SAMURAI (SJ) 1.0 4X4 (SJ 410) 970 cc 45 HP 33 kW 1988-11-01 - 2004-12-01 F10A 7102305

SAMURAI (SJ) 1.3 4X4 (SJ 413) 1324 cc 60 HP 44 kW 1988-11-01 - 2004-12-01 G13A 7102315

SAMURAI (SJ) 1.3 4X4 (SJ 413) 1298 cc 70 HP 51 kW 1988-11-01 - 2004-12-01 G13BA 7102321, 7102340, 7612300, 7612301, 7612318, 7612319

SAMURAI (SJ) 1.3 (SJ 413) 1324 cc 64 HP 47 kW 1988-11-01 - 2004-12-01 G13A 7102310

SJ 410 1.0 (SJ410) 970 cc 45 HP 33 kW 1981-09-01 - 1988-12-01 F10A 7102501, 7102304

SJ 410 Cabrio 1.0 (SJ410) 970 cc 45 HP 33 kW 1981-09-01 - 1988-12-01 F10A 7102303, 7102305

SJ 413 1.3 1324 cc 60 44 kW 1986-08-01 - 1990-08-01 G13A 7102315

SJ 413 1.3 1324 cc 64 HP 47 kW 1984-09-01 - 1990-08-01 G13A 7102503, 7102310

SUPER CARRY Bus (ED) 1.0 970 cc 42 HP 31 kW 1992-10-01 - 1999-03-01 F10A 7102337

SUPER CARRY Bus (ED) 1.0 970 cc 41 HP 30 kW 1994-09-01 - 1999-03-01 F10A 7102505, 7102339

SUPER CARRY Bus (ED) 1.0 (SK) 970 cc 45 HP 33 kW 1985-10-01 - 1999-03-01 F10A 7102504, 7102312p to ground and ignition source. (12V switched)

12 volt

Two 8mm fuel connections

One breather (top)

2 to 4 PSI

Our Part Number UVV6B

OE interchange part numbers :

ASHIKA05-09-999 BLUE PRINTADK86806 JAPANPARTSPB-999 JAPANPARTSPB-803 JAPKO05999 NIPPARTSJ1608003 NIPPARTS1608003 NIPPARTSJ1608003 SUZUKI15100-85501 SUZUKI15100-85501 SUZUKI15100-85501-000

OEM names and numbers are used for reference purposes only.
