Product information

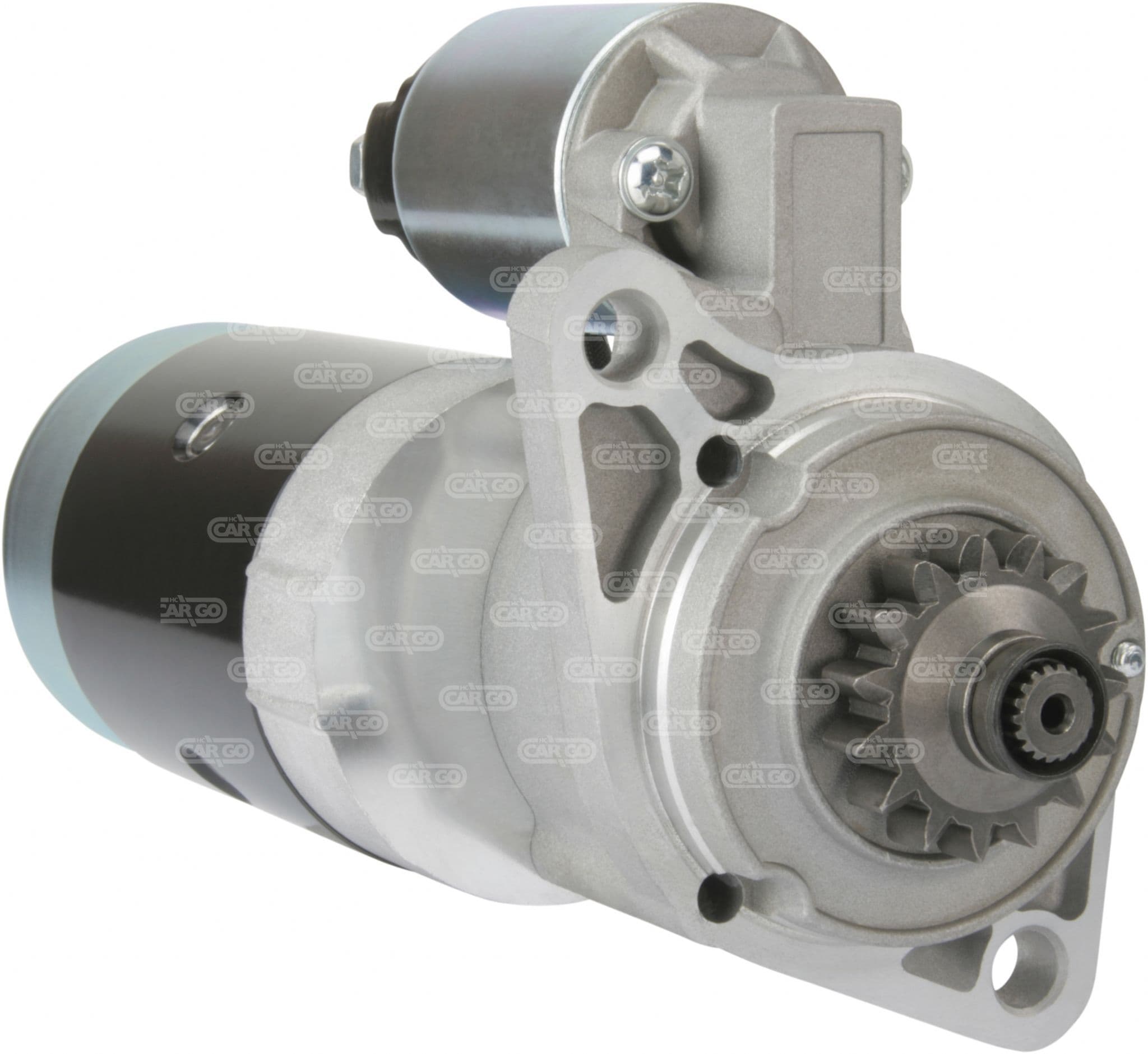

Starter Motor To replace Vetus STM 2762
Fits Vetus M414
Electrical specifications (Starter) |
||
|---|---|---|
| Voltage | 12 | |
| kW | 1.4 | |

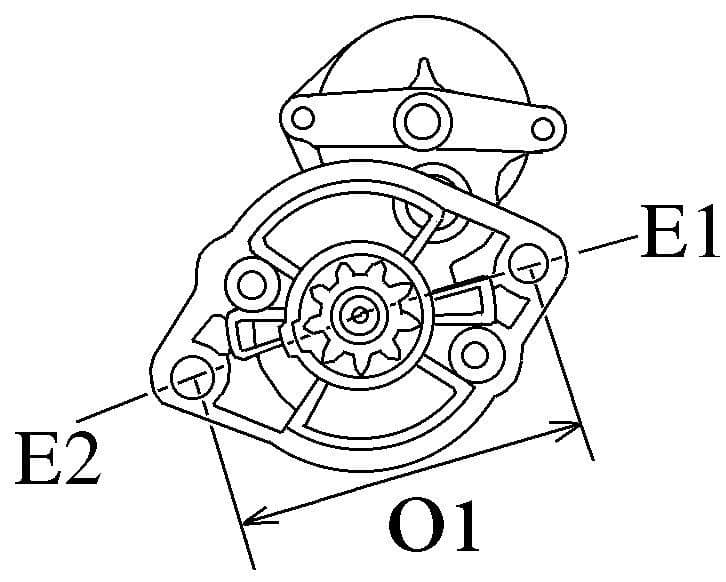

Physical specifications (Starter) |
||
|---|---|---|
| A | Mount. flange | 76.90 |
| B | Drive dist. | 29.25 |
| H | No. of teeth | 15 |
| I | B+ | M8 |
| N | Gear type | GR |
| O | Dist. | 118.00 |
| P | Rotation | CR |
| R | Total length | 228.00 |
Further information (Starter) |
||
|---|---|---|
| No./mount. holes | 2 (0) | |
| Drive type | Steel | |
Our Number 221044
OEM names and numbers are used for reference purposes only.
Warranty The Company warrants all equipment supplied by it to be free from defects in material workmanship under normal use. All such equipment with the benefit of this warranty only the company's obligation hereunder is limited to repairing replacing at our office. One year from date of shipment and which its examination shall disclose to its satisfaction to have been defective. This warranty is expressly in lieu of all other conditions and warranties expressed implied (whether by statue otherwise) and of all obligations liabilities on its part for damages following the use of the article supplied.
Technical specifications
| Brand: | HC Cargo |
| Product Code: | 110933 |
| Weight: | 4.74kg |
